Have you ever looked at a topographic map and felt like you were trying to decipher a secret code? Those squiggly brown lines, seemingly random, actually hold the key to understanding the shape and elevation of the land around you. While standard flat maps can be challenging to visualize in three dimensions, raised relief maps offer a powerful advantage, bringing the topography to life in a way that makes contour lines intuitive.
For hikers, navigators, educators, or anyone with a passion for the outdoors and geography, being able to read contour lines is an essential skill. It allows you to anticipate climbs and descents, identify ridges and valleys, and orient yourself in unfamiliar terrain. Understanding how these lines translate to the physical ups and downs of the landscape is crucial for safety, planning, and a deeper appreciation of the world.
The main points we will cover in this guide are what contour lines are, why raised relief maps are particularly effective for learning them, the key concepts behind reading contours, practical applications, and tips for mastering this valuable skill. Our goal is to provide you with a comprehensive understanding that removes the mystery from topographic maps, using the tactile and visual benefits of raised relief maps as our primary tool. By the end of this post, you will feel confident in your ability to interpret the language of contour lines and apply this knowledge in real-world situations.
Let's start with the fundamentals. At their core, contour lines are simply lines drawn on a map that connect points of equal elevation. Imagine walking along a hillside but staying at the exact same height above sea level the entire time; the path you would trace is essentially a contour line.
Think of it like slicing a loaf of bread horizontally. Each slice represents a certain elevation, and the edge of each slice, when viewed from above, forms a shape. On a map, these shapes are the contour lines, showing the outline of the land at specific, incremental heights. They are a two-dimensional representation of a three-dimensional surface.
Contour lines are fundamental to topographic maps, which are maps specifically designed to show the shape and elevation of the land surface. Without them, a topographic map would just show flat features like roads, rivers, and buildings without giving you any sense of the terrain's difficulty or form. They are the cartographer's primary tool for depicting relief, which refers to the variations in elevation of the Earth's surface.
While standard flat topographic maps are incredibly useful, they require a significant amount of mental visualization to translate the abstract lines into perceived terrain. This is where raised relief maps truly shine, especially for those new to reading contour lines or for kinesthetic learners. A raised relief map is a three-dimensional model of the terrain, with the hills and valleys physically molded onto the surface.

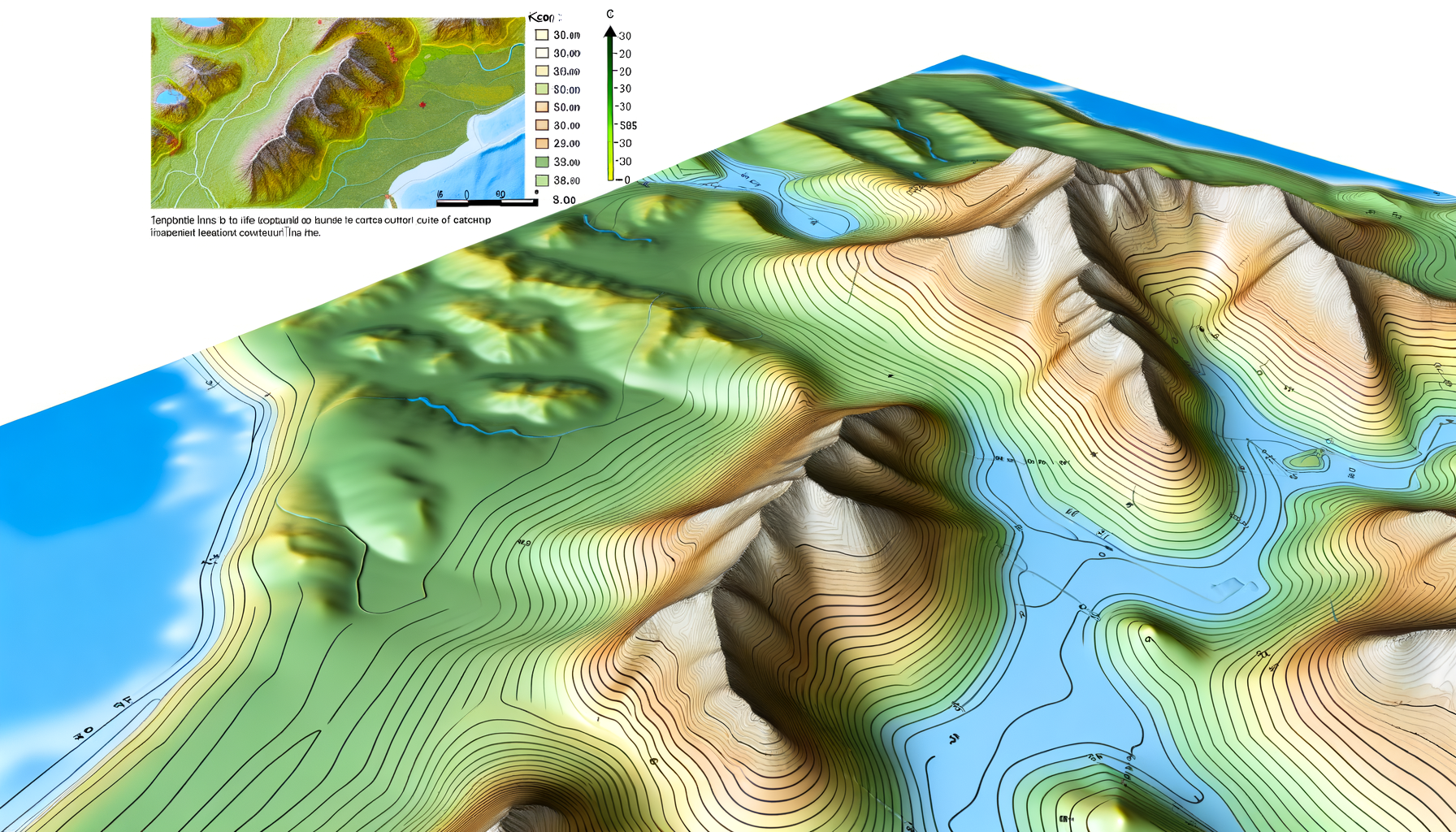

The contour lines are printed directly onto this physical model, aligning perfectly with the actual changes in elevation. This provides an immediate, tangible connection between the abstract concept of a contour line and the physical reality of the landform it represents. You can see and touch the hill while simultaneously seeing the concentric contour lines that delineate it.
This direct correlation significantly accelerates the learning process. Instead of just seeing lines on a page and *imagining* a hill, you see the lines *on* the hill itself. You can trace a contour line with your finger and feel that you are staying at the same physical height on the model. You can feel the steepness of a slope and immediately see how the contour lines are packed closely together in that area.
Raised relief maps bridge the gap between two dimensions and three dimensions in a way that no flat map can. They provide a concrete, tactile experience that reinforces the visual information provided by the contour lines. This multi-sensory approach makes understanding the principles of contour mapping much more intuitive and less reliant on abstract reasoning alone.
To effectively read and interpret contour lines, whether on a flat map or a raised relief map, you need to understand a few core concepts. These principles govern how contour lines are drawn and what they tell you about the terrain. Let's break down the most important ones.
Every topographic map has a specified contour interval. This is the vertical distance in elevation between adjacent contour lines. It is a fixed value for a given map and is always indicated in the map's legend.
For example, a map might have a contour interval of 20 feet or 10 meters. This means that every contour line represents an elevation that is 20 feet (or 10 meters) higher or lower than the lines directly next to it. Understanding the interval is absolutely critical, as it defines the vertical scale of the map's representation of the terrain.
A map with a small contour interval (like 10 feet) will show more detail about subtle changes in elevation but will also have many more lines, which can sometimes make the map appear cluttered. A map with a large contour interval (like 100 feet) will show less detail about minor undulations but will have fewer lines, making it easier to get a general sense of major terrain features on larger scales. Always check the legend to find the contour interval before you start reading the map.
Not all contour lines are created equal. To make maps easier to read, some lines are highlighted. Index contours are typically thicker lines and are labeled with their specific elevation value.
They usually occur every fifth contour line. These serve as starting points for counting elevation up or down to determine the height of intermediate contour lines. If you see an index contour labeled 500 and the interval is 20, you know the next unlabeled line uphill is 520, the next is 540, and so on.
Intermediate contours are the thinner lines that fall between the index contours. They represent the elevations at the specified contour interval (e.g., 20 feet, 10 meters) that are not labeled with their elevation. You determine their elevation by counting up or down from the nearest index contour based on the contour interval.
Supplementary contours are less common. They are often shown as dashed or dotted lines and represent an elevation change smaller than the standard contour interval (e.g., half the interval). These are used in areas with very gentle slopes where the standard interval lines would be too far apart to show subtle, but potentially important, terrain features.
The distance between contour lines on the map is one of the most important indicators of terrain steepness. This is where the raised relief map is particularly helpful, as you can directly see and feel the slope represented by the spacing of the lines. Closely spaced contour lines indicate steep terrain.
Imagine climbing a flight of stairs; you gain elevation quickly over a short horizontal distance. On a map, this rapid elevation gain over a short distance translates to the contour lines being very close together. The steeper the slope, the closer the lines will be.
Widely spaced contour lines, conversely, indicate gentle terrain. Think of walking up a long, gently sloping ramp; you gain elevation slowly over a long horizontal distance. On a map, this slow elevation gain over a long distance results in the contour lines being far apart. The gentler the slope, the farther apart the lines will be.
Areas with no contour lines at all (aside from the base elevation) are generally flat, though this is uncommon in most natural landscapes depicted on topographic maps. On a raised relief map, this spacing is physically represented – you will see the terrain rise sharply where lines are close and gently where they are far apart.
Contour lines form distinct patterns that represent different landforms. Learning these patterns is key to visualizing the terrain from the map. On a raised relief map, you can see the physical shape while observing the corresponding contour patterns.
Peaks or Summits: These are represented by concentric circles (or irregular closed shapes) near the highest point. The smallest circle represents the highest contour line before the elevation decreases. On a raised map, you see a physical bump or point outlined by these shrinking circles.
Valleys or Draws: These are indicated by contour lines that form V or U shapes that point *uphill* (towards higher elevation). A stream or river is often found in a valley bottom, and contour lines crossing a stream will form V shapes that point upstream (see the Rule of V's below). On a raised map, you feel and see a dip or depression between higher areas, with the contour lines curving inward as they go uphill.
Ridges: These are elevated areas that extend outwards from a peak or higher ground. Contour lines representing a ridge form V or U shapes that point *downhill* (towards lower elevation). Imagine walking along a ridge; the ground slopes away on both sides. On a raised map, you see an elongated raised area, and the contour lines wrap around it, pointing downhill as they cross.
Saddles: A saddle is a dip or pass between two peaks or high points on a ridge. It's like a mountain pass. On a map, saddles are represented by an hourglass shape or two sets of contour lines that curve towards each other, creating a low point between two higher areas. On a raised map, you physically see and feel the dip connecting two higher bumps.
Understanding these basic patterns allows you to quickly identify major landforms on a map, a skill greatly aided by the visual and tactile confirmation provided by a raised relief map.
A very specific and useful pattern is the "Rule of V's," which applies when contour lines cross a stream or river. When a contour line crosses a perennial or intermittent stream, it will form a V shape. The crucial part is the direction the V points: the V always points *upstream* (towards the source of the water and higher elevation).
This makes intuitive sense if you think about how water flows. Water flows downhill, perpendicular to the contour lines. As a stream carves a path, it creates a small valley or depression. The contour lines must bend to follow the shape of this valley, and because the valley floor (where the stream is) is lower elevation than the surrounding ground at the same latitude, the contour lines will curve upstream before crossing the stream channel at a relatively sharp angle, forming the V shape pointing uphill.
Identifying these V shapes is a reliable way to locate streams and determine the direction of water flow on a map, even if the stream isn't explicitly drawn or labeled. On a raised relief map, you can see the physical dip of the stream valley and how the molded contour lines clearly form V's pointing up the slope.
While most contour lines represent increasing elevation as you move towards the center of a closed shape (like a peak), sometimes a closed shape represents a depression, such as a sinkhole, crater, or quarry. These are shown using special hachure marks. Hachure marks are short lines that are drawn on the *inside* of the contour line circle or oval and point towards the lower elevation.
The first hachured contour line is at the same elevation as the closest regular contour line. Subsequent hachured lines inside it represent decreasing elevation at the standard contour interval. On a raised relief map, you can see a physical dip or hole in the terrain, and the contour lines outlining it will have these small hash marks pointing into the depression. This is a critical visual cue to distinguish a low point from a peak.
Now that we've covered the core concepts, let's focus on how the unique nature of a raised relief map enhances the reading process. It's not just a flat map with bumps; it's a tool that provides a tactile and intuitive layer of understanding. The physical form reinforces the patterns you see in the lines.
Tracing Lines: One of the most effective ways to learn is to literally run your finger along a contour line on the raised map. As you trace the line, you will feel that your finger stays at the same physical height relative to the map base. This tangible experience solidifies the concept that a contour line connects points of equal elevation in a way that simply looking at a flat line cannot.
Feeling the Slope: Touch different areas of the map. Feel the steepness of a hillside. Then look at the contour lines in that exact spot. Where you feel steepness, you will see the lines are close together. Where you feel a gentle slope, the lines are far apart. This immediate physical correlation is incredibly powerful for understanding the relationship between line spacing and gradient.
Visualizing Cross-Sections: With a flat map, visualizing a vertical slice through the terrain is a mental exercise. On a raised map, you can often physically see the profile of a hill or valley by looking at the edge of the molded area or simply by holding it at eye level from different angles. This makes understanding cross-sections much easier, as you can directly relate the vertical profile to the contour lines printed on the surface.
Identifying Landforms by Feel and Sight: Use both your eyes and your hands. Feel a peak – it's a raised bump. See the contour lines – they are concentric circles. Feel a valley – it's a depression or channel. See the contour lines – they are V's pointing uphill. This combined sensory input accelerates your ability to recognize landforms quickly and confidently.
Connecting Contours to Other Features: See a trail on the map? Trace it over the raised terrain. Does it follow a contour line (indicating a relatively level path)? Does it cut straight across many lines (indicating a steep climb)? See a stream? Follow it down the valley, feeling the dip and seeing the V-shaped contours pointing back uphill. The raised surface helps you understand the relationship between cultural features (trails, roads) and the natural terrain they are built upon or interact with.
Using a raised relief map transforms map reading from a purely visual, abstract task into a more tactile, engaging, and intuitive experience. It provides a constant physical reference that reinforces the meaning of every contour line.
The ability to read contour lines is far more than just an academic exercise; it has numerous practical applications that can enhance safety, planning, and enjoyment in various activities. Understanding the topography helps you make informed decisions about interacting with the land. Here are some key areas where this skill is invaluable.
For anyone hitting the trails, reading contour lines is essential. It allows you to predict the difficulty of a hike by assessing the steepness of the path. You can choose routes that match your fitness level, avoid unexpectedly strenuous climbs, or deliberately seek out challenging ascents.
Contour lines help you estimate hiking times. Knowing whether you will be ascending steeply, descending gently, or walking on relatively flat terrain allows for much more accurate planning than simply looking at horizontal distance. You can identify potential viewpoints (often on ridges or peaks), understand drainage patterns (using the Rule of V's to identify stream crossings), and anticipate changes in vegetation or microclimates that might occur with significant elevation change.
In wilderness navigation using a map and compass, understanding contour lines is as important as knowing how to read bearings. Terrain association – the ability to look at the landscape around you and match it to the map – is heavily reliant on recognizing landforms depicted by contours. If you can identify a prominent ridge, a steep hillside, or a valley on your map using the contour patterns, you can more accurately determine your location and orient your map.
Lost in fog or low visibility? While you can't see distant landmarks, you can often identify the local terrain by its slope and shape. Are you on a steep slope with lines close together? Is the ground falling away sharply on one side (a ridge)? Are you in a dip with ground rising all around (a saddle or valley)? Relating these physical sensations to the contour patterns on your map can help you regain your bearings even when visual cues are limited.
Beyond recreation, understanding contour lines is fundamental in civil engineering, urban planning, and environmental management. Planners and engineers use contour maps to determine suitable locations for buildings, roads, and infrastructure, considering factors like drainage, slope stability, and excavation requirements. Understanding the natural flow of water indicated by contours is critical for designing effective drainage systems and preventing erosion.
Environmental scientists use contour maps to study watersheds, predict flood risks, analyze habitat distribution based on elevation and aspect (slope direction), and plan conservation efforts. Anyone involved in land management, from large-scale planning to simply siting a garden pond, benefits from this knowledge.
For teachers and students of geography, geology, or environmental science, raised relief maps are invaluable teaching tools. They make abstract concepts tangible and provide a clear visual aid for understanding how contour lines represent real-world topography. Students can grasp the relationship between two-dimensional lines and three-dimensional forms much more readily when they can see and touch the landform being depicted.
Using raised relief maps in an educational setting can significantly improve spatial reasoning skills and make the learning process more engaging and memorable. They transform a potentially dry topic into an interactive exploration of the Earth's surface.
Becoming proficient at reading contour lines takes practice, but it's a skill that improves with each map you study and every terrain you explore. Raised relief maps are excellent starting points, but here are some tips to help you on your journey to mastery.
As with learning any new skill, there are common pitfalls when first starting to read contour lines. Being aware of these can help you avoid them and learn more efficiently. Most mistakes stem from a lack of attention to detail or misinterpreting the relationship between the lines and the terrain. Here are a few common errors and how to prevent them.
By being mindful of these common mistakes and actively practicing the correct interpretation, you can significantly improve your contour reading skills and avoid potentially critical errors in navigation or planning.
Understanding contour lines is a fundamental skill that transforms the way you see and interact with maps and the natural world. It's the language of topography, allowing you to visualize a three-dimensional landscape from a two-dimensional representation. While mastering this language takes some effort, the rewards are immense, from safer and more enjoyable outdoor adventures to a deeper appreciation for the intricate shapes of the Earth's surface.
Raised relief maps serve as an exceptional tool for anyone learning or teaching contour line reading. Their ability to provide a physical, tangible representation of the terrain directly correlated with the printed contour lines makes the abstract concepts concrete and intuitive. They bridge the gap between seeing and feeling the landscape, accelerating comprehension and building confidence.
Whether you are planning a challenging mountain trek, navigating unfamiliar wilderness, or simply curious about the hills in your backyard, the ability to read contour lines will empower you. It enables better decision-making, enhances safety, and opens up new possibilities for exploration. Armed with the principles discussed in this guide and the visual and tactile aid of a raised relief map, you are well on your way to becoming a confident interpreter of the Earth's topography.
So, grab a raised relief map, find the contour interval, and start exploring the peaks, valleys, and ridges within its surface. Each line tells a story about the land, and now you have the key to understand it. Happy mapping and happy exploring!
