Have you ever looked at a map of a hiking trail, a wilderness area, or even just your local park, and wondered how it tells you about hills, valleys, and mountains? Traditional flat maps, while excellent for showing distances and directions, inherently struggle with representing the third dimension: elevation.
Understanding the rise and fall of the land is crucial for countless activities, from planning a safe and enjoyable hike to locating the best viewpoint, or even understanding geological formations. Without this knowledge, a map is just a flat piece of paper showing symbols and lines.
Fortunately, cartographers have developed ingenious methods to translate complex three-dimensional landscapes onto a two-dimensional surface, and even to create physical models that literally show the shape of the land. This post will demystify the two primary ways maps convey elevation: contour lines and raised relief maps.
By the end of this comprehensive guide, you will gain a deep understanding of how contour lines work, how to interpret them to visualize terrain, and how raised relief maps offer a different, often more intuitive, perspective. You'll be equipped with the knowledge to choose the right map for your needs and navigate the real world with a much richer understanding of its topography.
Contour lines are arguably the most common and powerful method used on standard topographic maps to depict terrain. They are a series of lines drawn on the map that connect points of equal elevation above a specific reference point, usually sea level.
Think of it like slicing through the land horizontally at regular intervals. Each slice forms a boundary, and that boundary is represented by a contour line on the map. Every point along a single contour line is at the exact same height.
These lines serve as a visual code that, once understood, allows you to reconstruct the three-dimensional shape of the landscape in your mind. They are essential for anyone who needs precise information about elevation changes, gradients, and landforms.
The concept behind contour lines is elegantly simple, yet it provides a wealth of information. Imagine walking along a specific contour line; you would be walking perfectly level, neither gaining nor losing altitude.
When multiple contour lines are shown together, their pattern reveals the shape and steepness of the terrain. The spacing between lines is particularly informative, acting as a direct indicator of the slope's gradient.
Contour lines provide a quantitative representation of elevation. They are typically labeled with their corresponding height value, allowing you to determine the exact elevation of any point on the map or calculate the elevation difference between two points.
Learning to read contour lines is like learning a new language, but the grammar rules are straightforward and logical. The way the lines are spaced and shaped tells you everything you need to know about the underlying landform.
Closely spaced contour lines indicate steep terrain. This is because a significant change in elevation occurs over a short horizontal distance.
Conversely, widely spaced contour lines signify gentle slopes or relatively flat ground. Here, you can travel a greater horizontal distance before experiencing a change in elevation equivalent to the contour interval.
Contour lines never cross each other, except in the very rare case of an overhanging cliff or cave entrance, where the ground at a lower elevation is horizontally situated beneath ground at a higher elevation. Generally, if lines appear to merge briefly, they represent a very steep feature like a cliff face, where the contour lines are essentially stacked on top of one another from a map perspective.
Every fifth contour line is typically drawn darker and is called an Index Contour. These lines are usually labeled with their elevation, making it easier to quickly determine the height represented by surrounding lines.
Contour lines form distinctive patterns that correspond to common geographical features. Recognizing these patterns is key to successfully visualizing the landscape from a contour map.
A hill or mountain peak is represented by a series of closed loop contour lines. The smallest, innermost loop indicates the summit or highest point.
If the closed loop has hachure marks (small tick marks) pointing inwards, it indicates a depression or a pit instead of a peak. The elevation within this loop is lower than the elevation of the loop itself.
Valleys and ravines are shown by contour lines that form a 'V' shape. The point of the 'V' always points uphill towards higher elevation.
This 'V' shape is formed because the contour line is crossing a stream or drainage channel, which is typically located at the lowest point of the valley. The stream itself would flow out of the point of the 'V', downhill.
Ridges are elongated areas of high ground, while spurs are often smaller projections extending from a ridge. On a contour map, ridges are represented by lines that form a 'U' or rounded shape.
Crucially, for a ridge, the closed end of the 'U' or rounded shape points downhill, away from higher elevation. This is the opposite pattern to a valley.
A saddle is a low point along a ridge or between two peaks. It appears on a contour map as an hourglass or figure-eight shape, where contour lines dip down and then rise up again between two areas of higher elevation.
Saddles are often natural routes of travel across elevated terrain and are important features to identify when planning routes.
To provide varying levels of detail and clarity, maps use different types of contour lines.
1. Index Contours: These are the most prominent lines, drawn thicker than others and usually labeled with their elevation value. They typically occur every fifth contour line.
2. Intermediate Contours: These are the lines drawn between the index contours. They are thinner and typically not labeled individually, but their elevation can be determined by counting up or down from the nearest index contour.
3. Supplementary Contours: In areas with very gentle slopes, the standard contour interval might be too large to show subtle changes in terrain. Supplementary contours are dashed or dotted lines used to show these minor elevation changes. They are placed at an interval smaller than the standard contour interval.
The contour interval is a critical piece of information for reading a contour map. It is the vertical difference in elevation between adjacent intermediate contour lines.
The contour interval is constant for a given map or map section and is usually stated in the map's legend or margin. Common intervals include 10 feet, 20 feet, 40 feet, or even 100 feet depending on the scale of the map and the ruggedness of the terrain being depicted.
A smaller contour interval means the map shows finer details about elevation changes. This is common for maps of areas with gentle slopes or where precise elevation data is important.
A larger contour interval is used for maps covering vast, mountainous regions or smaller scale maps. While it shows the overall shape of the major landforms, it sacrifices detail on minor terrain features.
While powerful, contour maps do have certain limitations. Learning to interpret them takes practice and can be challenging for beginners to visualize the 3D landscape from the 2D lines.
Very fine details, such as small boulders or minor dips in the terrain smaller than the contour interval, may not be represented. Also, in areas of dense vegetation or buildings, the accuracy of the underlying elevation data used to create the contours might be affected.
Despite these limitations, contour maps remain the standard for detailed topographic representation due to their precision, portability, and ability to show exact elevation values.

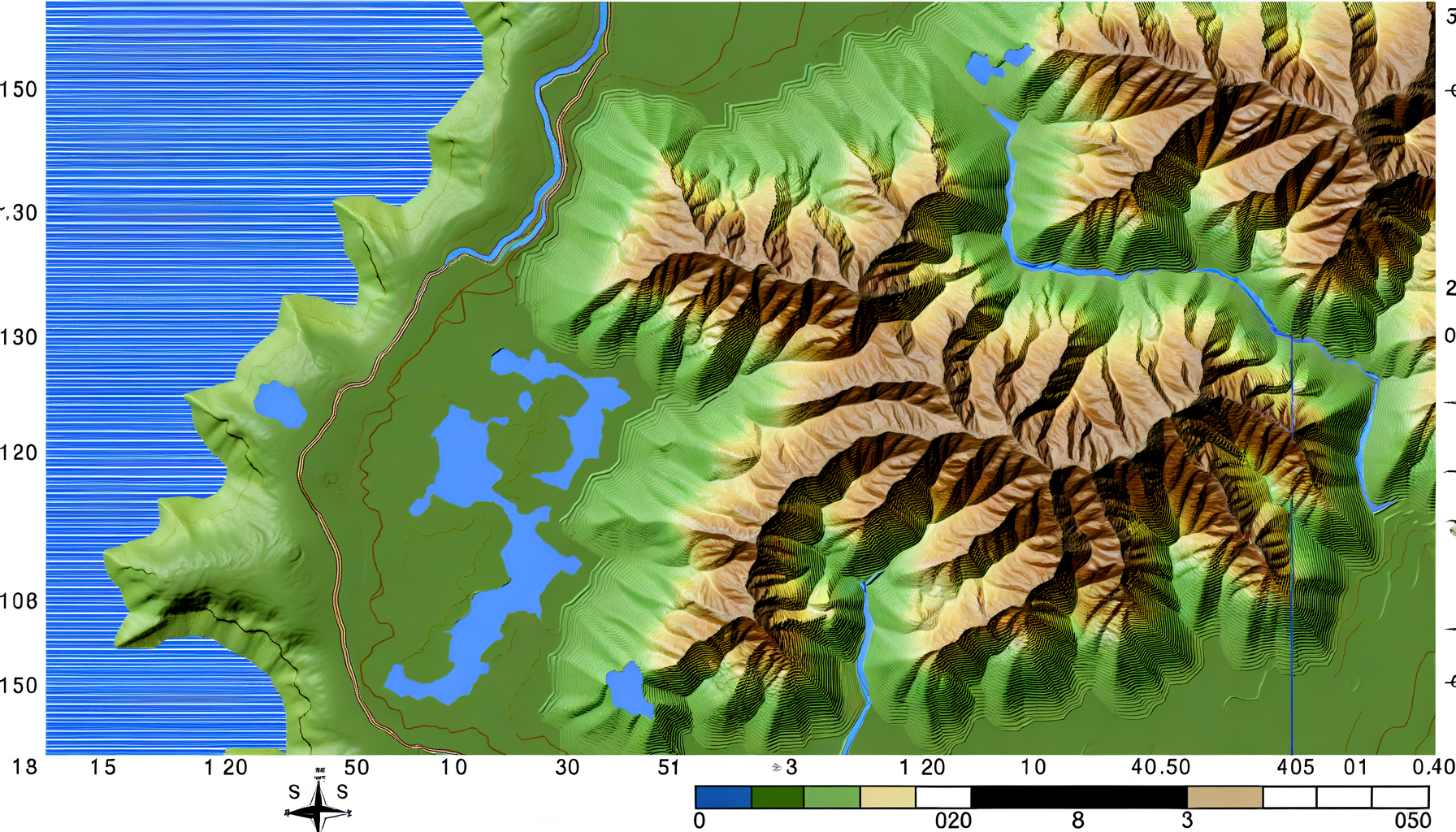

Raised relief maps offer a fundamentally different approach to representing elevation. Instead of using abstract lines, they physically model the topography of the land, creating a three-dimensional representation that you can see and touch.
These maps are created by printing a map image onto a plastic sheet and then using a vacuum molding process to raise the surface of the plastic according to the elevation data. The result is a map that literally has bumps and dips corresponding to the hills and valleys of the depicted area.
Raised relief maps are incredibly intuitive. Even someone with no map-reading experience can immediately grasp the general shape of the land, identifying mountains, valleys, and plateaus at a glance.
The creation of a raised relief map involves several steps, starting with accurate elevation data, often derived from sources like contour maps or digital elevation models (DEMs).
This data is used to create a mold or die that represents the physical shape of the terrain, usually with significant vertical exaggeration to make the features more visible and tactile on a relatively thin sheet of plastic.
A printed map, often a standard topographic or political map, is then placed over the mold, and heat and vacuum pressure are applied. This process pulls the warm plastic down into the mold, giving the map its three-dimensional shape.
The result is a map where the printed graphics align precisely with the molded terrain, allowing you to correlate locations on the map with the physical highs and lows of the molded surface.
Vertical exaggeration is a key characteristic of most raised relief maps. It means that the vertical scale (elevation) is larger than the horizontal scale (distance).
For example, if the horizontal scale is 1:100,000 (one unit on the map equals 100,000 units in reality), the vertical scale might be exaggerated by a factor of 5 or 10, meaning 1 centimeter of height on the map represents significantly less real-world elevation than 1 centimeter of horizontal distance represents real-world distance.
This exaggeration is necessary because most landscapes, outside of very rugged mountains, have subtle elevation changes relative to their horizontal extent. Without exaggeration, features like gentle hills and valleys would barely be noticeable on the molded surface.
While it makes the terrain visually dramatic and easier to feel, vertical exaggeration distorts the true steepness of slopes. A slope on a raised relief map will appear much steeper than it actually is in reality.
Raised relief maps offer distinct advantages and disadvantages compared to traditional flat maps.
Their primary benefit is their intuitive nature and tangible representation of terrain. They are excellent for educational purposes, planning routes by visualizing the landscape, and simply appreciating the topography of an area.
They can be particularly helpful for people who find it difficult to interpret abstract contour lines. Seeing and feeling the mountains and valleys makes the connection between the map and the real world immediate.
However, raised relief maps have drawbacks. They are bulky and difficult to fold or carry in the field, making them impractical for navigating on a hike or expedition. They are also generally more expensive to produce than flat maps.
Furthermore, while they show the shape of the land, they are not as precise for determining exact elevation values as contour maps, especially if the map is not meticulously labeled with contour lines overlaid on the molded surface. The vertical exaggeration also means you cannot accurately measure true slope angles directly from the physical model.
Deciding whether to use a contour map or a raised relief map depends heavily on your purpose and needs. Both are valuable tools for understanding terrain, but they excel in different areas.
Contour maps are the workhorse for detailed navigation and analysis. They provide precise elevation data, allow for accurate measurement of distances and bearings, and, once mastered, offer a nuanced understanding of terrain shape and gradient.
If you need to know the exact elevation gain on a trail, identify the steepest ascent, or pinpoint your location precisely using terrain association, a contour map is indispensable.
Raised relief maps, on the other hand, are superb for visualization and general understanding. They are fantastic for planning trips from a bird's-eye view, explaining terrain to others, or simply as a striking display piece that showcases the topography of a region.
They provide an immediate, intuitive sense of the landscape's character – whether it's rugged and mountainous, gently rolling, or relatively flat. They make it easy to identify major drainages, mountain ranges, and broad plateaus.
Let's look at a side-by-side comparison of some key aspects:
1. Representation: Contour maps use abstract lines; Raised relief maps use physical modeling.
2. Intuition: Contour maps require learned interpretation; Raised relief maps are immediately intuitive.
3. Precision: Contour maps offer precise elevation data (based on interval); Raised relief maps offer general shape, less precise for exact heights unless combined with contours.
4. Portability: Contour maps are easily folded and carried; Raised relief maps are bulky and fragile.
5. Detail: High-quality contour maps can show very fine terrain details; Raised relief maps are limited by the molding process and vertical exaggeration.
6. Cost: Contour maps are generally less expensive; Raised relief maps are more expensive to manufacture.
7. Measurement: Accurate distance and bearing measurements are standard on contour maps; Slope angle measurements are distorted on raised relief maps due to exaggeration.
In many cases, the ideal solution is to use both types of maps in conjunction. A raised relief map can provide an excellent initial overview for planning and visualization, while a detailed contour map is essential for navigation and detailed route analysis in the field.
Understanding contour lines and using raised relief maps opens up a world of possibilities for enjoying and interacting with the natural environment. Their applications extend across numerous fields and activities.
For outdoor enthusiasts like hikers, backpackers, and climbers, the ability to read contours is fundamental to route planning and safety. You can identify steep ascents to avoid or prepare for, locate water sources in valleys, find navigable passes, and even predict line of sight.
Understanding the terrain helps prevent getting lost and allows for a more efficient and enjoyable journey. Knowing whether you'll be climbing a gentle slope or tackling a near-vertical incline is vital information.
Geologists and environmental scientists use contour maps to study landforms, analyze drainage patterns, predict water flow, and understand geological processes. Urban planners and engineers use them for site selection, road building, and managing water runoff.
Raised relief maps are particularly valuable in educational settings, making abstract geographical concepts tangible for students of all ages. They are also popular in visitor centers and parks to help people understand the layout of the area they are visiting.
Even for casual users, understanding these map types enhances appreciation for the landscape. You begin to see the subtle (and not so subtle) ways the land has been shaped by natural forces.
Becoming proficient at reading contour lines and effectively using raised relief maps takes practice, but it is a skill well worth developing. Here are some tips to help you on your journey.
1. Start Simple: Begin with maps of areas you know well, perhaps your local park or a smaller hill. Try to correlate the lines on the map with the actual terrain you have experienced.
2. Visualize the Lines: Imagine water filling the landscape up to a certain elevation; the shoreline would be a contour line. Or, picture walking along a contour line, always staying level.
3. Pay Attention to the Contour Interval: This is crucial for understanding the scale of vertical change represented on the map.
4. Look for Patterns: Actively search for the distinctive shapes of peaks (closed loops), valleys (V-shapes pointing uphill), and ridges (U or rounded shapes pointing downhill).
5. Use a Profile View: Many mapping software programs or apps can generate elevation profiles along a planned route, showing a side view of the terrain you'll traverse based on contour data. This is a great learning tool.
6. Combine Map Reading with Field Observation: As you hike or explore, constantly refer to your map and compare the predicted terrain (based on contour lines) with the actual landscape you see. This reinforces your learning.
7. Study Raised Relief Maps: Use a raised relief map of an area you plan to visit with a contour map of the same area. Compare how the abstract lines correlate with the physical shape. This can significantly improve your ability to visualize contours.
8. Practice Regularly: Like any skill, map reading improves with consistent practice. Make it a habit to look at the topography represented on maps, even for areas you aren't planning to visit.
Maps are much more than just guides to distance and direction; they are powerful tools for understanding the three-dimensional world around us. Contour lines and raised relief maps are the primary means by which cartographers unlock the secrets of elevation, allowing us to see, feel, and interpret the shape of the land.
Contour lines provide the precision and detail necessary for accurate navigation and in-depth analysis, demanding careful study and interpretation. Raised relief maps offer immediate, intuitive visualization, making the abstract concept of topography tangible and easily understandable.
Whether you are planning your next wilderness adventure, studying geography, or simply curious about the landscape, mastering the interpretation of contour lines and appreciating the unique perspective offered by raised relief maps will profoundly enhance your understanding of the world. Embrace these tools, practice your skills, and gain a deeper connection with the terrain beneath your feet.
```
